ECCENTRIC REDUCER CLAMP X WELD T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E32CW6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf

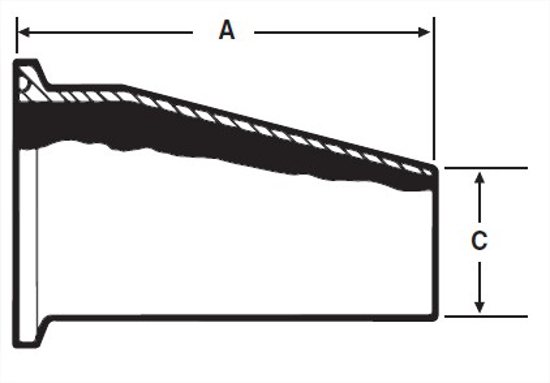

A, in.	6.375
A, mm.	161.93
C, in.	4
C, mm.	101.6
T Nom Wall, in.	0.083

Material Type

316L

Industry Standard

3A

Connections

Clamp X Weld

Wall Thickness

.109X.083

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E32CW6.0X4.0.STEP

A, in.

6.375

C, in.

4

T Nom Wall, in.

0.083
