ECCENTRIC REDUCER LARGE END 14 & SMALL THREAD T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Threaded Bevel Seat
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-15F4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf

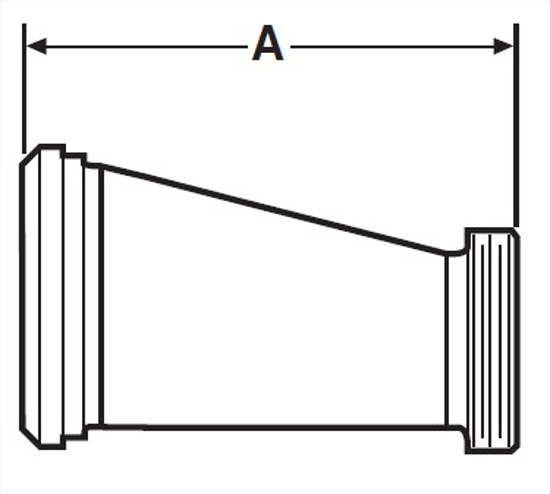

A, in.	9.718
A, mm.	246.84
Product Weight	1.32
