ELBOW 90 DEGREE WELD W/TANGENTS T316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2S2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2S
Steel O’brien Part Number	L2S-2.5-7-316
Wayland Part Number	WL2S
Dixon Part Number	B2S
Sanitary Solutions Part Number	SS2S
Sanitube Part Number	L2S

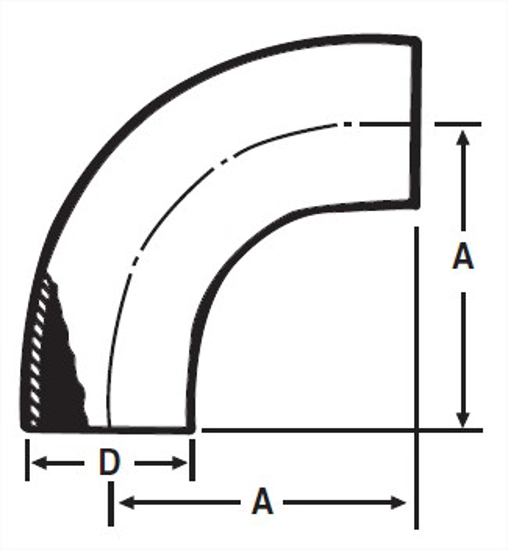

A, in.	5.187
A, mm.	131.75
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.2

Size

2.5

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

2.5

Material-Type

316L

Passivated

Special Request

Catalog File

Fittings Catalog.pdf

Steel O’brien Part Number

L2S-2.5-7-316

Dixon Part Number

B2S

Sanitube Part Number

L2S

A, mm.

131.75

D, mm.

63.5

Product Weight

1.2
