FEMALE E-LINE SOLID END CAP T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-15I
Wayland Part Number	W16AI-15I
Dixon Part Number	16AI-15I
Sanitary Solutions Part Number	SS16AI-15I
Sanitube Part Number	16AI-15I

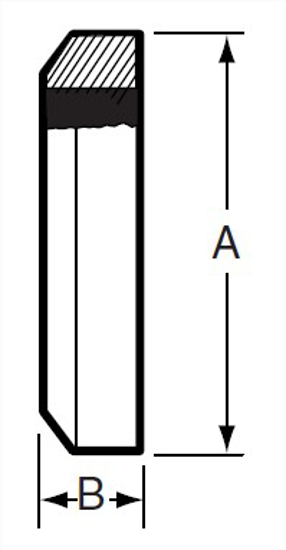

A, in.	7.5
A, mm.	190.5
B, in.	0.75

Material Type

316L

Industry Standard

3A

Connections

Female E-Line

Wall Thickness

0.109

Material Test Reports

MTR’s Available Upon Request

Cad Model File

Click here to request 3D Step File

Alfa Laval Part Number

HDI-16AI-15I

Dixon Part Number

16AI-15I

Sanitube Part Number

16AI-15I

A, mm.

190.5
