HEAVY DUTY CLAMP SINGLE PIN HINGE HOLE IN THE WINGNUT

Attribute name	Attribute value
Size	5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	5
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	13MHHM5.0-H.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-5-304

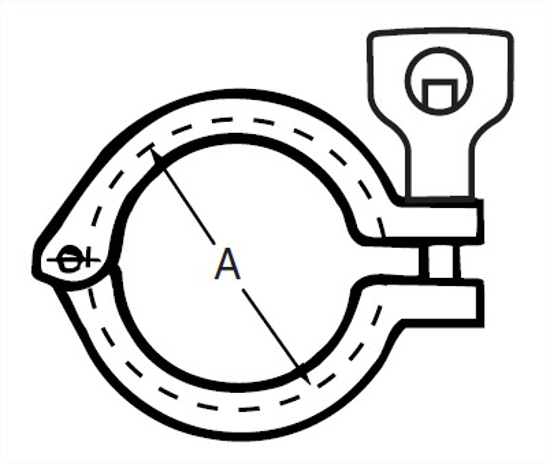

A, in.	5.817
A, mm.	147.75
Product Weight	2.4

Size

5

Connections

Clamp

Wall Thickness

0.109

Material Test Reports

COC Available for 304 Materials

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

13MHHM5.0-H.STEP

Steel O’brien Part Number

13MHHM-5-304

A, mm.

147.75
