HEAVY DUTY CLAMP SINGLE PIN HINGE/HOLE IN THE WINGNUT

Attribute name	Attribute value
Size	6
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	13MHHM6.0-H.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-6-304

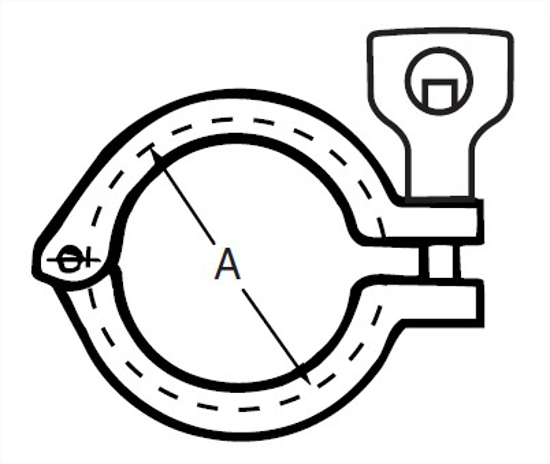

A, in.	6.695
A, mm.	170.05
Product Weight	2.75
