PLAIN BEVEL SEAT LONG WELD FERRULE 304 3A

Attribute name	Attribute value
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14WL2.5.STEP
Catalog File	Fittings Catalog.pdf

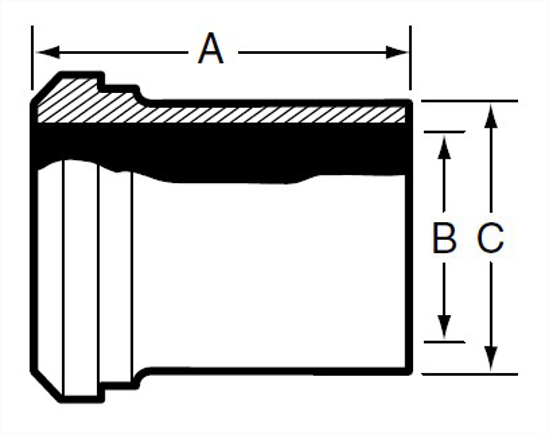

A, in.	2.75
A, mm.	69.85
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.58
