PLAIN BEVEL SEAT LONG WELD FERRULE T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14WL1.0.STEP
Catalog File	Fittings Catalog.pdf

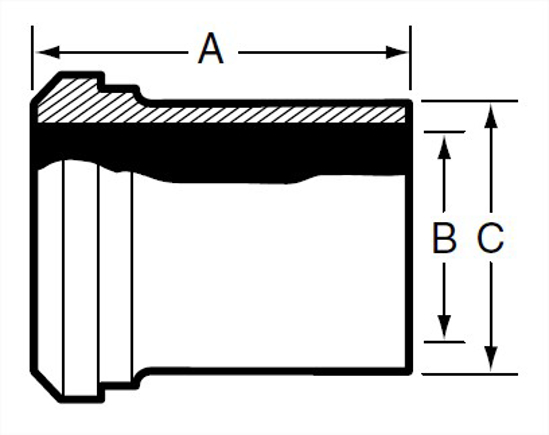

A, in.	2
A, mm.	50.8
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.16

Material Type

316L

Industry Standard

3A

Connections

Plain Bevel Seat X Weld

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

14WL1.0.STEP

A, in.

2

B, in.

0.87

C, mm.

25.4
