REDUCING TEE BUTTWELD 6 MO 20 RA EP ID/32 RA OD SF5

Attribute name	Attribute value
Size	4.0X.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-6
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	4.0X.5
Wall Thickness	.083X.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7RWWW6L4.0X.5-...STEP
Catalog File	MaxCore.pdf

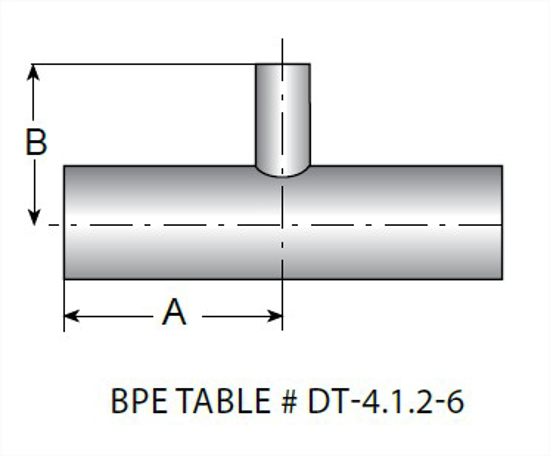

A, in.	4.125
A, mm.	104.78
B, in.	3.625
Product Weight	2.121
