REDUCING TEE BUTTWELD A22 20 RA EP ID/32 RA OD SF5

Attribute name	Attribute value
Size	1.0X.75
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE

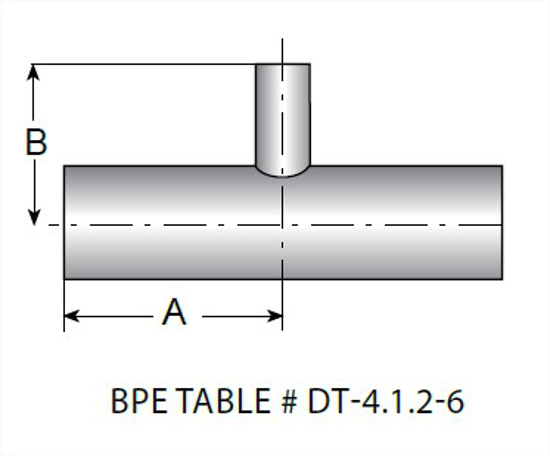

BPE Table #	DT-4.1.2-6
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	1.0X.75
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7RWWW6L1.0X.75-...STEP
Catalog File	MaxCore.pdf
A, in.	2.125
A, mm.	53.98
B, in.	2.125
Product Weight	0.308

Surface Finish

PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD

BPE Table #

DT-4.1.2-6

Polish Code

PO

OD Tube Size

1.0X.75

Material-Type

A22

Material Trade Names (Reference)

Hastelloy C22®

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxCore.pdf

A, mm.

53.98

Product Weight

0.308
