REDUCING TEE CLAMP T316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-3X1.5-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP

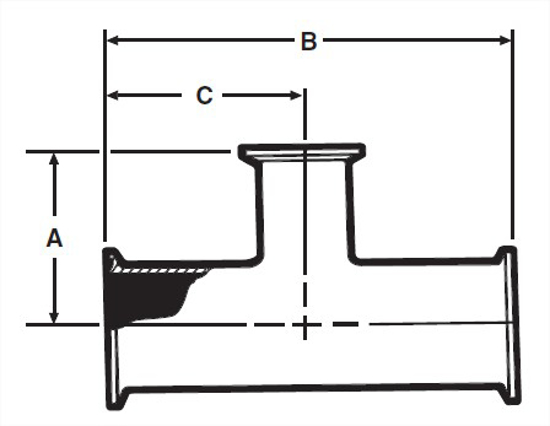

A, in.	2.906
A, mm.	73.81
B, in.	6.187
C, in.	3.093
C, mm.	78.56
Product Weight	1.52

Material Type

316L

Industry Standard

3A

Connections

Clamp X Clamp X Clamp

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG7R3.0X1.5.STEP

Alfa Laval Part Number

7RMP

Wayland Part Number

W7RMP

Sanitary Solutions Part Number

SS7RMP

A, in.

2.906

B, in.

6.187

C, mm.

78.56
