SEE TE7WWCS ITEM

Attribute name	Attribute value
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWCS1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-1-7-316

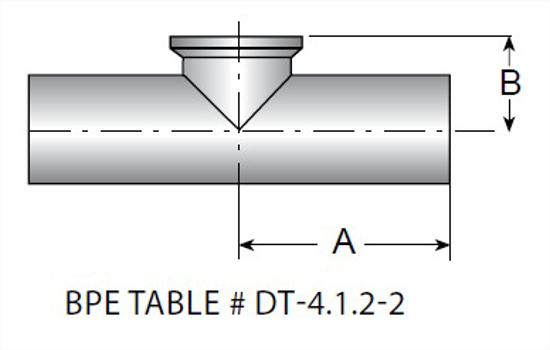

A, in.	4.25
A, mm.	107.95
B, in.	1.125
T Nom Wall, in.	0.065

Material Type

316L

Industry Standard

3A

Connections

Weld X Weld X Clamp

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E7WWCS1.0.STEP

Steel O’brien Part Number

7WWMS-1-7-316

A, mm.

107.95

T Nom Wall, in.

0.065
