SHORT CONCENTRIC REDUCER CLAMPXWELD 6 MO 20RAID/32RAOD SF1

Attribute name	Attribute value
Size	2.0X.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE

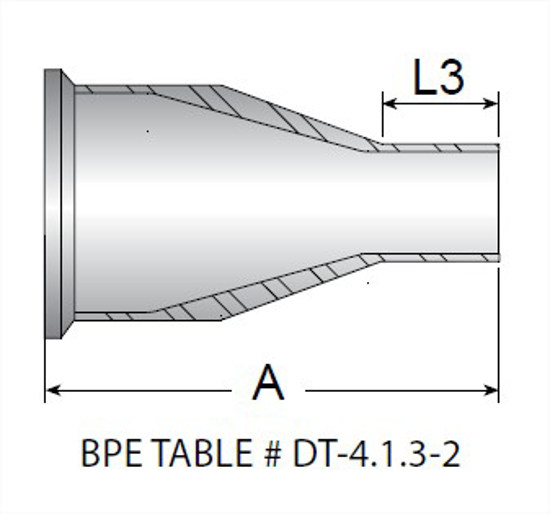

BPE Table #	DT-4.1.3-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	2.0X.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	Click here to request 3D Step File
Catalog File	MaxCore.pdf
A, mm.	0
Product Weight	0.586

Surface Finish

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

BPE Table #

DT-4.1.3-2

Polish Code

PL

OD Tube Size

2.0X.5

Material-Type

6MO

Material Trade Names (Reference)

AL6XN, AL-6XN®, ULTRA 6XN®

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxCore.pdf

Product Weight

0.586
