SHORT CONCENTRIC REDUCER WELD T316L 20RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	6.0X3.0
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A

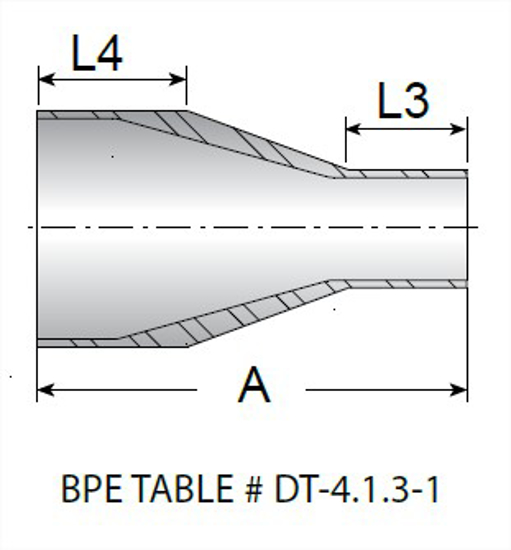

BPE Table #	DT-4.1.3-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE31SWW6L6.0X3.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf
A, in.	7.25
A, mm.	184.15
B, in.	1.5
C, in.	2
C, mm.	50.8
Product Weight	2.158

Size

6.0X3.0

Industry Standard

ASME BPE;3A

ID / OD Polish

20 µin Mechanical ID / 32 µin Mechanical OD

SF Number

SF1

Wall Thickness

.109X.065

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

TE31SWW6L6.0X3.0-...STEP

Specification Document

VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

A, mm.

184.15

C, in.

2

Product Weight

2.158
