SHORT ECCENTRIC REDUCER CLAMPXWELD T316L 15RAEP ID/32RAOD SF4

Attribute name	Attribute value
Size	2.0X1.0
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A

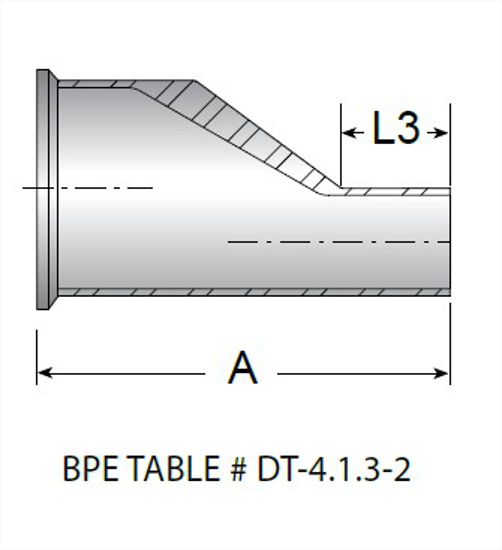

BPE Table #	DT-4.1.3-2
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE32SCW6L2.0X1.0-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf
A, in.	3.875
A, mm.	98.43
B, in.	1
Product Weight	0.467

Size

2.0X1.0

Industry Standard

ASME BPE;3A

ID / OD Polish

15 µin Electropolished ID / 32 µin Mechanical OD

SF Number

SF4

Wall Thickness

0.065

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

TE32SCW6L2.0X1.0-...STEP

Specification Document

VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

A, mm.

98.43

Product Weight

0.467
