SOLID END CAP CLAMP 6 MO 20 RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	0.75
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE

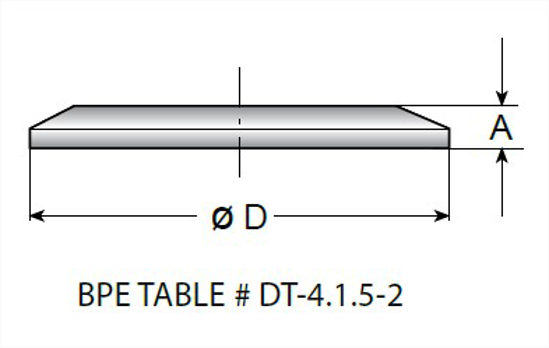

BPE Table #	DT-4.1.5-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	Click here to request 3D Step File
Catalog File	MaxCore.pdf
A, in.	0.187
A, mm.	4.75
Product Weight	0.033

Size

0.75

Industry Standard

ASME BPE

ID / OD Polish

20 µin Mechanical ID / 32 µin Mechanical OD

SF Number

SF1

Wall Thickness

0.065

UNS #

N08367

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

Click here to request 3D Step File

A, in.

0.187

Product Weight

0.033
