TEE 15 ENDS T304 3A

Attribute name	Attribute value
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	71.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7

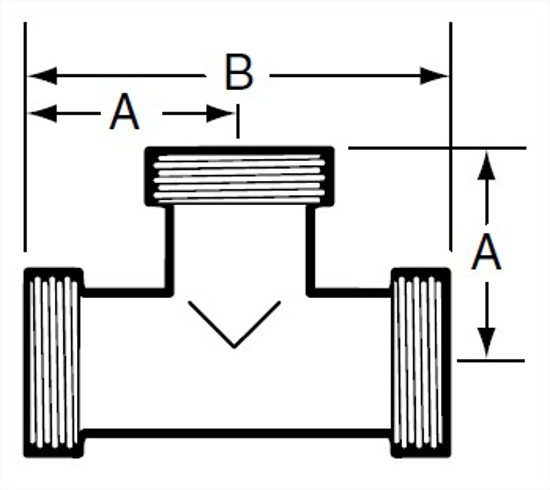

A, in.	1.812
A, mm.	46.02
B, in.	3.625

Material Type

304

Industry Standard

3A

Connections

Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Cad Model File

71.0.STEP

Alfa Laval Part Number

7

Dixon Part Number

B7

Sanitube Part Number

7

A, mm.

46.02
