TEE CL X CL X W 316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7CCW1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7MMW-1-7-316

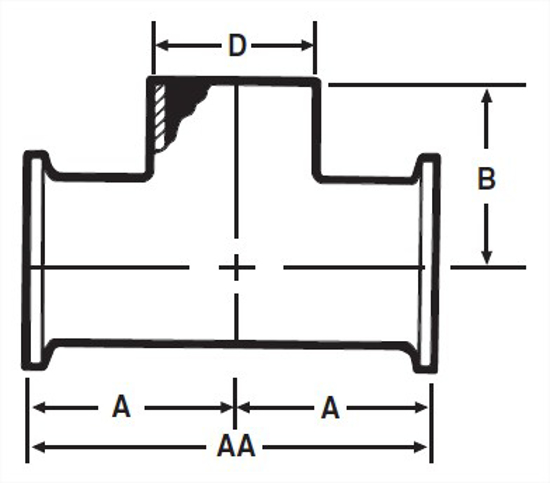

A, in.	1.625
A, mm.	41.28
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AA, in.	3.25
AA, mm.	82.55
Product Weight	0.42
