TEE CLAMP A22 20 RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	3
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-4
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	3
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG76L3.0-...STEP
Catalog File	MaxCore.pdf

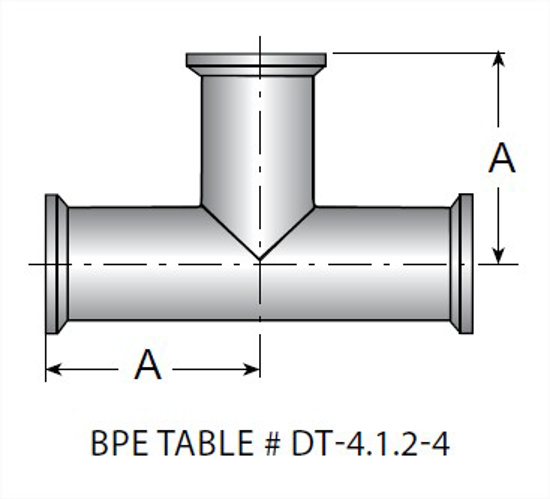

A, in.	3.875
A, mm.	98.43
Product Weight	2.125

Size

3

Industry Standard

ASME BPE

ID / OD Polish

20 µin Mechanical ID / 32 µin Mechanical OD

SF Number

SF1

Wall Thickness

0.065

UNS #

N06022

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

TEG76L3.0-...STEP

A, in.

3.875

Product Weight

2.125
