TEE W X C X C T304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCC3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMM-3-7-304

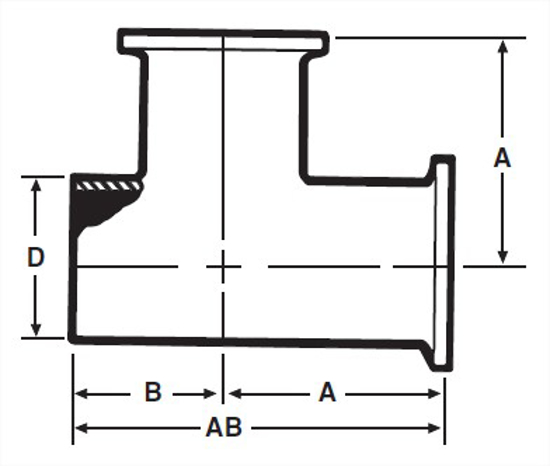

A, in.	3.093
A, mm.	78.56
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
AB, in.	5.687
AB, mm.	144.45
Product Weight	1.46
