TEE W X C X C T304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WCC6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMM-6-7-304

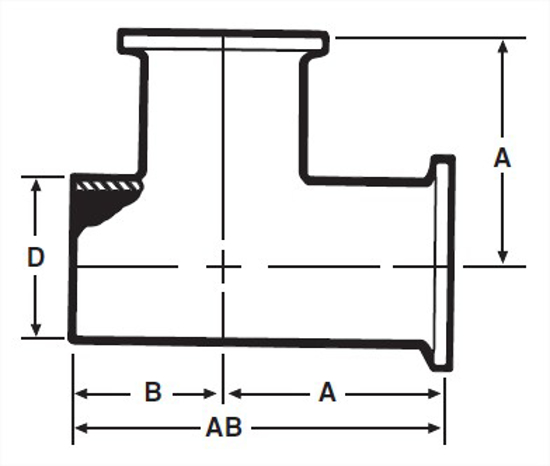

A, in.	6.5
A, mm.	165.1
B, in.	5.625
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
AB, in.	12.125
AB, mm.	307.98

Material Type

304

Industry Standard

3A

Connections

Weld X Clamp X Clamp

Wall Thickness

0.109

Material Test Reports

COC Available for 304 Materials

Cad Model File

E7WCC6.0.STEP

Steel O’brien Part Number

7WMM-6-7-304

A, mm.

165.1

D, in.

6

T Nom Wall, in.

0.109

AB, mm.

307.98
