TEE W X C X C T316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WCC1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMM-1-7-316

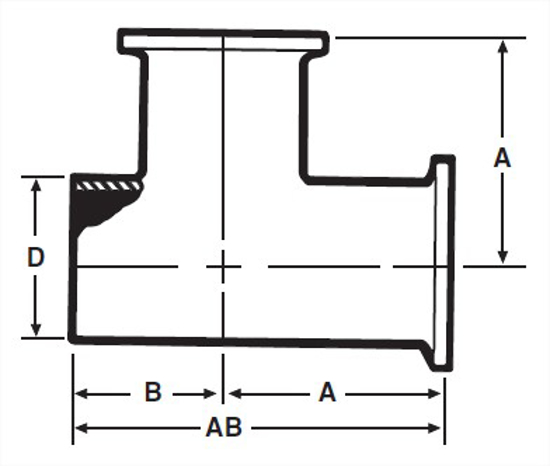

A, in.	1.625
A, mm.	41.28
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AB, in.	2.75
AB, mm.	69.85
Product Weight	0.42
