TEE W X C X W T316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WCW4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WMW-4-7-316

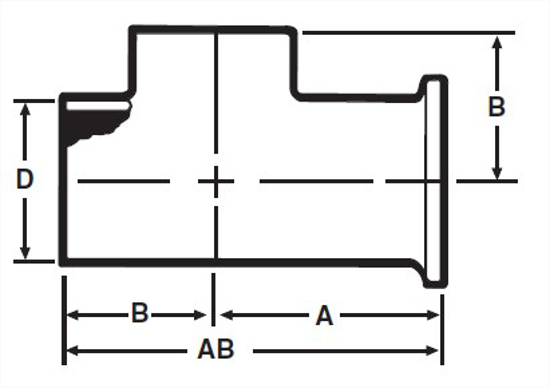

A, in.	4.25
A, mm.	107.95
B, in.	3.625
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
AB, in.	7.875
AB, mm.	200.03
Product Weight	2.74
