TEE W X W X C 304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-2.5-7-304

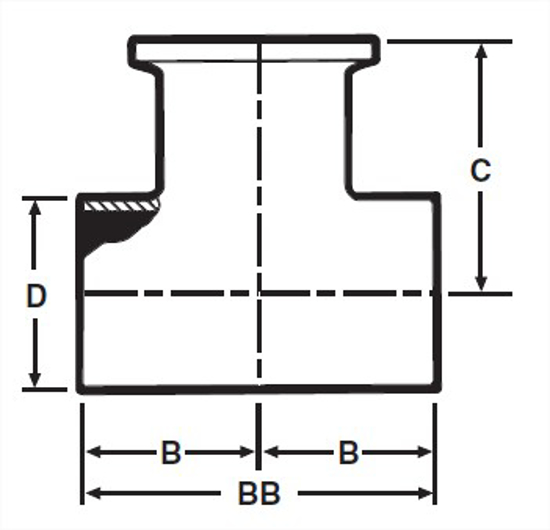

B, in.	2.343
C, in.	2.843
C, mm.	72.21
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	0.9
