TEE W X W X C 304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-4-7-304

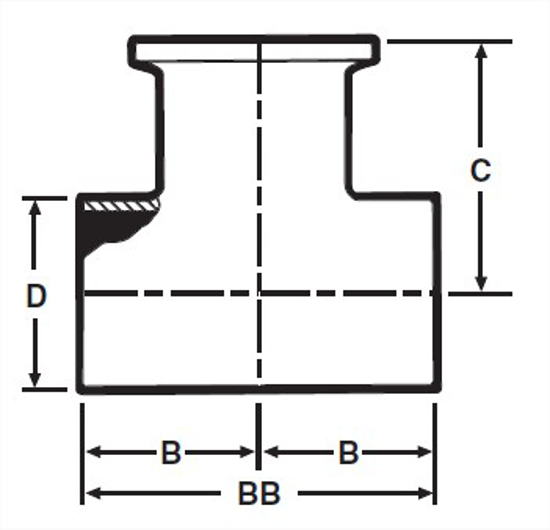

B, in.	3.625
C, in.	4.656
C, mm.	118.26
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
BB, in.	7.25
BB, mm.	184.15
Product Weight	2.74

Material Type

304

Industry Standard

3A

Connections

Weld X Weld X Clamp

Wall Thickness

0.083

Material Test Reports

COC Available for 304 Materials

Cad Model File

E7WWC4.0.STEP

Steel O’brien Part Number

7WWM-4-7-304

C, in.

4.656

D, in.

4

T Nom Wall, in.

0.083

BB, mm.

184.15
