THREADED BEVEL SEAT LONG WELD FERRULE T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	15WL4.0.STEP
Catalog File	Fittings Catalog.pdf

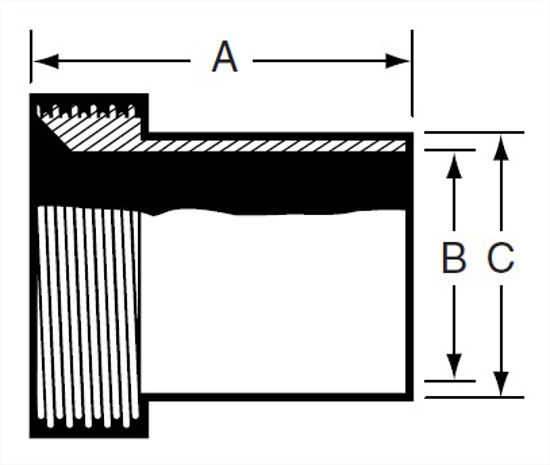

A, in.	4
A, mm.	101.6
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	2.06

Material Type

316L

Industry Standard

3A

Connections

Plain Bevel Seat X Weld

Wall Thickness

0.083

Material Test Reports

MTR’s Available Upon Request

Cad Model File

15WL4.0.STEP

A, in.

4

B, in.

3.834

C, mm.

101.6
