TRANSITION PC 1.0 TUBE X 23 MM OD DIN T316L MACHINE FINISH

Attribute name	Attribute value
Size	DN20X1.0
Industry Standard	Din 11866;Din 11850
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	DN20X1.0
Wall Thickness	1.5
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

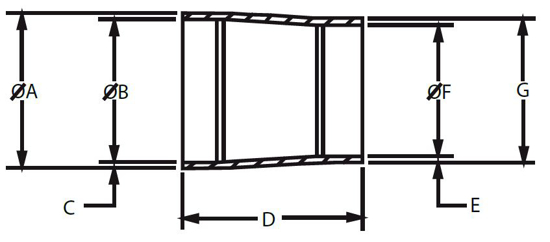

A, in.	1
A, mm.	25.4
B, in.	0.87
C, in.	0.065
C, mm.	1.65
D, in.	1.5
D, mm.	38.1
E, in.	0.06
E, mm.	1.5
F, in.	0.79
F, mm.	20
G, in.	0.91
G, mm.	23
