TRANSITION PC 1.5 TUBE X 38.4 MM OD ISO T316L MACHINE FINISH

Attribute name	Attribute value
Size	ISO32X1.5
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO32X1.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

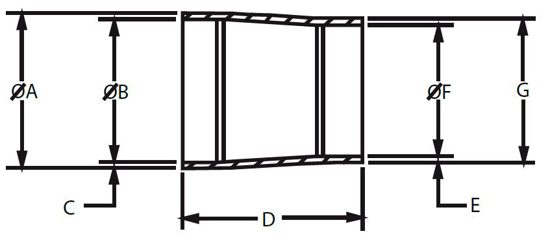

A, in.	1.67
A, mm.	42.4
B, in.	1.51
C, in.	0.065
C, mm.	1.65
D, in.	1.5
D, mm.	38.1
E, in.	0.065
E, mm.	1.65
F, in.	1.37
F, mm.	34.8
G, in.	1.5
G, mm.	38.1
