TRANSITION PC 2.0 TUBE X 48.3 MM OD ISO T316L MACHINE FINISH

Attribute name	Attribute value
Size	ISO40X2.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO40X2.0
Wall Thickness	2
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

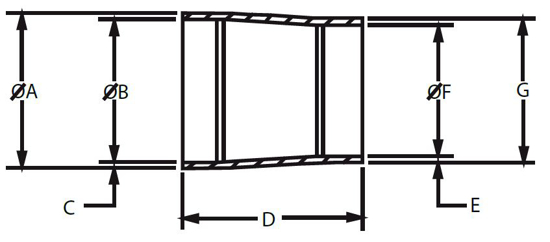

A, in.	2
A, mm.	50.8
B, in.	1.87
C, in.	0.08
C, mm.	2
D, in.	1.5
D, mm.	38.1
E, in.	0.08
E, mm.	2
F, in.	1.74
F, mm.	44.3
G, in.	1.9
G, mm.	48.3
