TRANSITION PC 4.0 TUBE X 114.3/2.6 MM OD ISO T316L MACH FIN

Attribute name	Attribute value
Size	ISO100X4.0
Industry Standard	ISO1127
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	ISO100X4.0
Wall Thickness	0.083
Material-Type	316L
Country of Origin	USA
Material Test Reports	MTR’s Available Upon Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

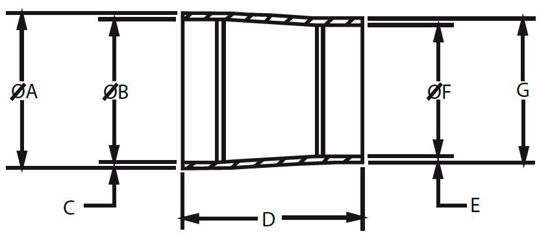

A, in.	4.5
A, mm.	114.3
B, in.	4.3
C, in.	0.1
C, mm.	2.6
D, in.	2
D, mm.	50.8
E, in.	0.083
E, mm.	2.11
F, in.	3.834
F, mm.	97.38
G, in.	4
G, mm.	101.6
