U-BEND 180 DEGREE WELD 304 #7 3A

Attribute name	Attribute value
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WU1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-1.5-7-304
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU

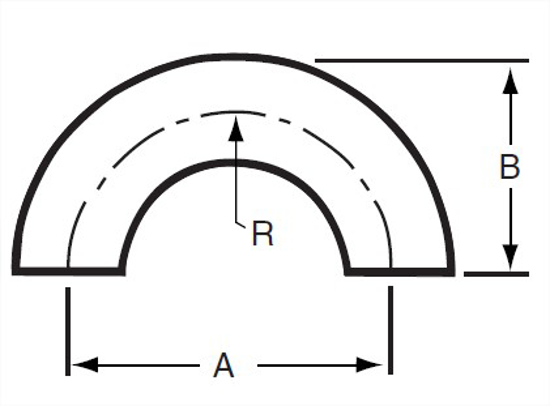

A, in.	4.5
A, mm.	114.3
B, in.	3
C, in.	1.5
C, mm.	38.1
R, in.	2.25
T Nom Wall, in.	0.065
Product Weight	0.5

Size

1.5

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

1.5

Material-Type

304

Passivated

Special Request

Catalog File

Fittings Catalog.pdf

Steel O’brien Part Number

2WU-1.5-7-304

Dixon Part Number

B2WUL

Sanitube Part Number

2WU

A, mm.

114.3

C, in.

1.5

R, in.

2.25

Product Weight

0.5
