U-BEND 180 DEGREE WELD 316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WU3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-3-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU

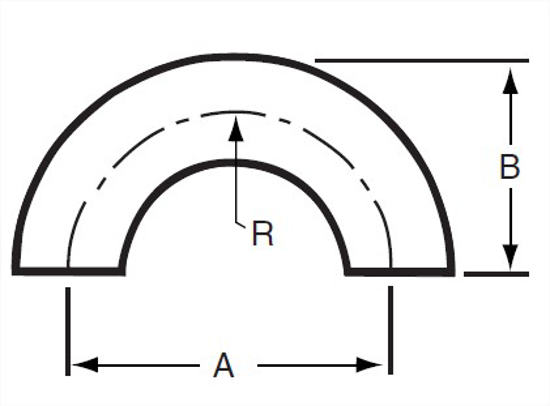

A, in.	9
A, mm.	228.6
B, in.	6
C, in.	3
C, mm.	76.2
R, in.	4.5
T Nom Wall, in.	0.065
Product Weight	2.16

Material Type

316L

Industry Standard

3A

Connections

Weld X Weld

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E2WU3.0.STEP

Alfa Laval Part Number

L2WU

Wayland Part Number

W2WU

Sanitary Solutions Part Number

SS2WUL

A, in.

9

B, in.

6

C, mm.

76.2

T Nom Wall, in.

0.065
