U-BEND 180 DEGREE WELD 316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WU4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2WU
Steel O’brien Part Number	2WU-4-7-316
Wayland Part Number	W2WU
Dixon Part Number	B2WUL
Sanitary Solutions Part Number	SS2WUL
Sanitube Part Number	2WU

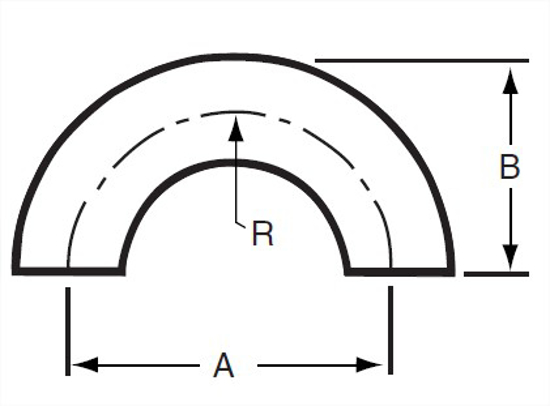

A, in.	12
A, mm.	304.8
B, in.	8
C, in.	4
C, mm.	101.6
R, in.	6
T Nom Wall, in.	0.083
Product Weight	5.38
