WELD 45 DEGREE LATERAL T304 3A

Attribute name	Attribute value
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28WA2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-2.5-7-304
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA

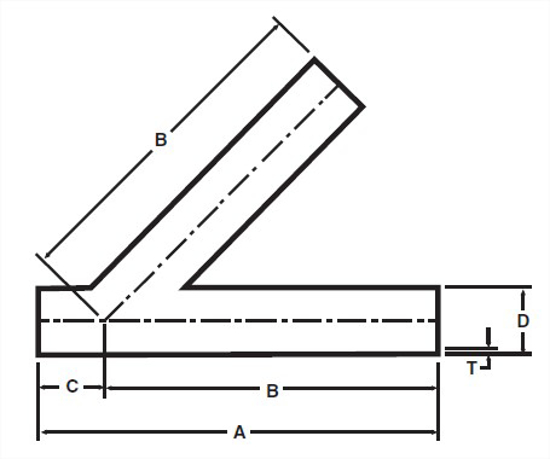

A, in.	10.125
A, mm.	257.18
B, in.	8.5
C, in.	1.625
C, mm.	41.28
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	2.34
