WELD 45 DEGREE LATERAL T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28WA4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L28WA
Steel O’brien Part Number	28WA-4-7-316
Wayland Part Number	W28WA
Dixon Part Number	B28WA
Sanitary Solutions Part Number	SS28WA
Sanitube Part Number	28WA

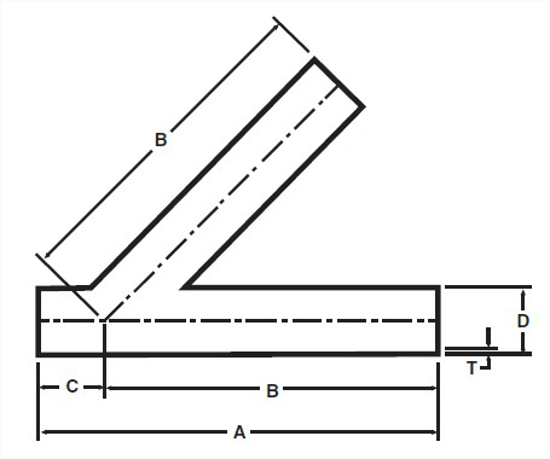

A, in.	12.812
A, mm.	325.42
B, in.	10.75
C, in.	2.062
C, mm.	52.37
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	6.4

Material Type

316L

Industry Standard

3A

Connections

Weld X Weld X Weld

Wall Thickness

0.083

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E28WA4.0.STEP

Alfa Laval Part Number

L28WA

Wayland Part Number

W28WA

Sanitary Solutions Part Number

SS28WA

A, in.

12.812

B, in.

10.75

C, mm.

52.37

D, mm.

101.6

Product Weight

6.4
