WELD CROSS T304 3A

Attribute name	Attribute value
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	B9WWWW
Steel O’brien Part Number	9WWWW-3-7-304
Wayland Part Number	W9WWWW
Dixon Part Number	B9WWWW
Sanitary Solutions Part Number	SS9WWWW
Sanitube Part Number	9WWWW

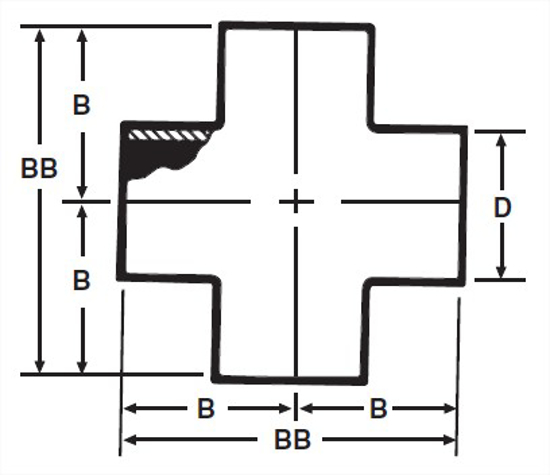

B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.16

Material Type

304

Industry Standard

3A

Connections

Weld X Weld X Weld X Weld

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Cad Model File

Click here to request 3D Step File

Alfa Laval Part Number

B9WWWW

Wayland Part Number

W9WWWW

Sanitary Solutions Part Number

SS9WWWW

B, in.

2.593

D, mm.

76.2

BB, in.

5.187

Product Weight

1.16
