45 DEGREE WELD ELBOW T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-2.5-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS

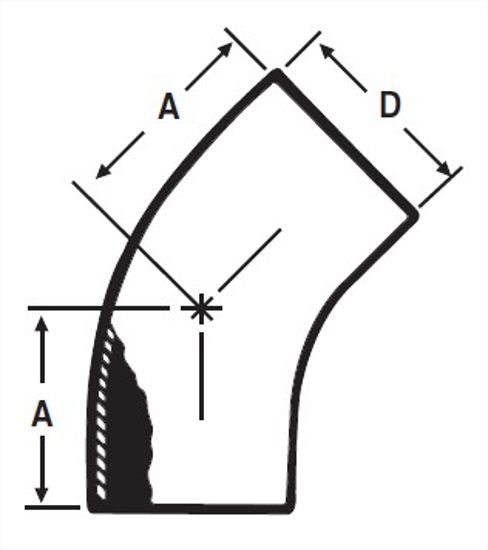

A, in.	3
A, mm.	76.2
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.8

Size

2.5

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

2.5

Material-Type

316L

Passivated

Special Request

Catalog File

Fittings Catalog.pdf

Steel O’brien Part Number

L2KS-2.5-7-316

Dixon Part Number

B2KS

Sanitube Part Number

L2KS

A, mm.

76.2

D, mm.

63.5

Product Weight

0.8
